Ozone Therapy Instrument

This instrument can produce ozone fluid or ozone fog. OZONE is strong oxidant, and it can kill bacteria, fungus, and virus.

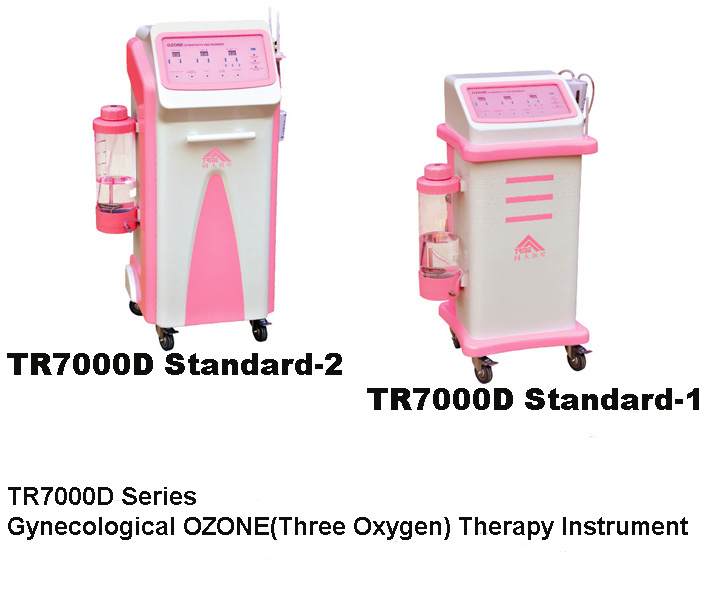

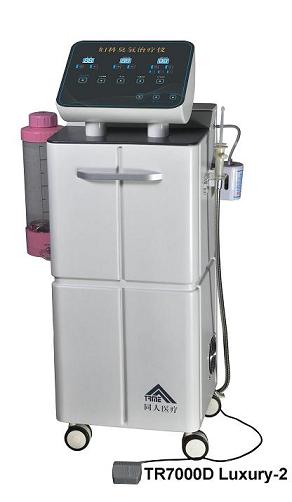

TR7000D Series Ozone Gynecological Therapy Instrument, uses ozone production technology, SCM technology, electronic technology, automatic control technology, as well as the clinical medical knowledge and ozone sterilization characteristic of organic union, using high frequency electric tube electrode corona discharge in air to produce ozone, the ozone is dissolved in water and the atomization gas, form the ozone water and ozone fog, used for cleaning women vagina, atomized into achieve sterilization and treatment of gynecological diseases of purpose.
The device''''s main function is to rinse the treatment of female genital tract inflammation high concentrations of ozone and ozone water mist, through a special treatment to wash the genital tract therapy and aerosol therapy. At the same time, the device can also be used in general medicine and sterile water for flushing, reduces the workload of medical staff. The device for gynecological inflammation treatment provided a kind of new treatment method.

Product characteristic
(1) The use of advanced technology to produce instant high concentration ozone gas, ozone, ozone fog;
(2) Ozone water and ozone fog treatment of gynecological inflammation of the method compared with the traditional treatment more effective and fast;
(3) The use of advanced intelligent control panel, display a more beautiful, more convenient operation;
(4) Adopting the anti interference and automatic thermostat technology, maintained the irrigation fluid temperature, lets the patient in the treatment process more comfortable;
(5) With ozone water and ozone fog two modes to choose from, to flush and therapeutic effect;
(6) Can directly use tap water, purified water, preparing medicine treatment,
(7) With ozone disinfection function.
(8) Wide bactericidal spectrum, thorough treatment, ozone can kill the female vagina all kinds of harmful pathogens, when all full contact lesions, do not stay dead, thorough treatment, administer thoroughly, has bactericidal, anti-inflammatory, pain relief function, in the treatment of cervicitis meanwhile. Attendant of the other reproductive tract inflammation can be cured.
(9) No trauma, no pain, treatment head design fully into account the female physiological characteristics, treatment process without trauma, no pain, no bleeding; no scar after healing, especially suitable for nulliparous women.
(10) With repair function, ozone and active component can increase the cell viability, accelerate wound healing, shorten repair period.

Technical parameters:
Input power: ≤ 1500VA;
Ozone density : ≥ 80mg/m3
Noise: ≤ 60dB (A);
Ozone water flow: 1.0~2.0L/min;
Temperature range of ozone fluid : 30~40℃
Ultrasonic atomization operating frequency: (1.7± 10%) MHz;
Atomization rate: ≥ 10mL/h.

Functions:
Bacterial Vaginosis
Fungal vaginitis,Trichomonas vaginitis
Cervicitis,Mild to moderate cervical erosion
Mycoplasma,Chlamydia vaginitis,Urethritis,Cystitis,Gonorrhea
Senile vaginitis,Viral diseases such as :Comprehensive treatment of Condyloma
Pregnancy,Lactation gynecological inflammation
