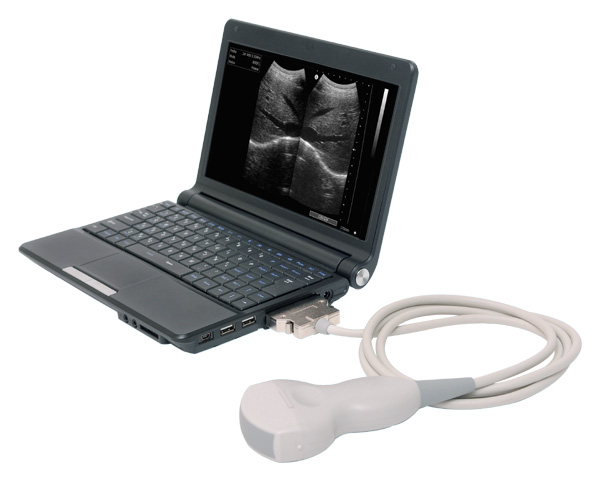

KR-2088Z Laptop type Full Digital Ultrasound Diagnostic Equipment
Advantages:
Light weight of 1.5kg, 2cm for thickness, 17cm for width, 25cm for length,
very convenient for doctor or veterinary to carry out.
U Disk for upgrade.
Dismountable battery.
Connect with Jet printer, Laser printer to print directly.
Other performance is as the same as the laptop computer, such as power save mode,
touch pad and so on.
Features:
Battery
192-frame cineloop
Two USB ports
Support SD card
General software, Obstetrics software and Cardiac software.
Software:
General measurement: distance, circumference, volume, angle, heart rate and etc.
Obstetrics measurement software: BPD, GS, CRL, AD, AC, FL, HC, FTA, APTD, TTD
and calculating fetus’ weight, pregnancy week, fetal physiological rating
according to the previous measuremt.
Cardiac measurement software. The measurement result could be shown automatically.
Specifications
|
Scanning mode |
electronic linear array, electronic convex array |
|
Imaging model |
B, B/B, B/M, M, 4B |
|
Gray scale |
256 levels, four selectable gamma curve |
|
Transducer frequency |
2.5-8.5 MHz |
|
Magnification |
×0.8, ×0.9, ×1.0,×1.1,×1.2,×1.3, ×1.4,×1.5 |
|
Permanent storage |
1024 |
|
Cine loop |
192, manual and automatic |
|
Sound Power |
8 grades from 0-7 |
|
Dynamic Range |
Adjustable from 30-75 |
|
USB Ports |
2 |
|
IP set |
8 |
|
Pseudo color |
5 kinds |
|
Image Processing |
Up/Down, Left/Right, Black/White, Frame correlation Edge enhancement, Scroll |
|
Measurement |
Circumference, Area, Volume, Heart ratio, Velocity, OB and Cardiac |
|
Focus |
Number and location of the focus can be adjusted |
|
Puncture |
Puncture guide line |
|
TGC |
Adjustable, Near field, Middle field and Far field are adjustable from 39-99 |
|
Body Marks |
35 |
|
IP set |
Hospital’s name, Date, Time, Formula of Fetus’ weight and Pseudo color |
|
Image store format |
BMP, DICOM |
|
Formula of Fetus’ weight |
OSAKA, TOKYO1, TOKYO2, MERZ |
|
Image |
Frame correlation, Edge enhancement, Dynamic range, center line, scan angle Puncture |
|
Voltage |
AC85V-265V |
|
