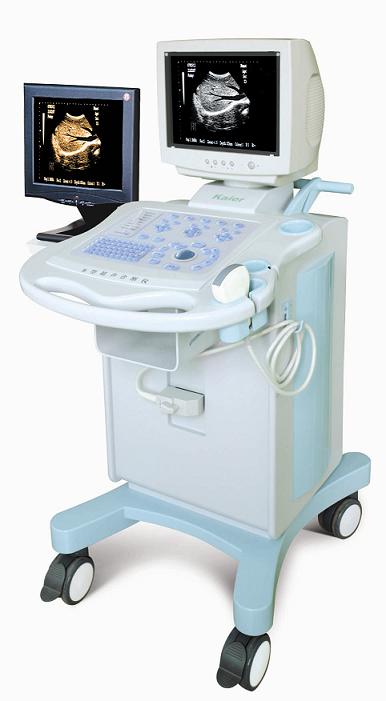

KR-8088E Ultrasound Diagnostic Equipment

 Technical features：

Full backlit operation keyboards
Standard Probe:  2.0-5.0MHz multi-frequency convex probe
Display: 4B, B, B+B, B+M, M
Max depth: 185-240mm optional
Gray scales: 256
Resolution: landscape orientation ≤ 2mm,
                    Portrait ≤1mm,
                    Geometric position precision ≤5%,
                    Near field ≤4mm
Scanning line: 512/frame, frequency: 30 frames / second
Focusing: 4 focuses (dynamic variable aperture)
STC adjustment: 8 segment TGC
Image processing: Dynamic filter, dynamic frequency scanning, L/R, UP/DOWN, B/W turning, edge enhance
Zoom in: X1.0, x1.2, x1.5, x2.0 Zoom in partly
PIP: display PIP can show the image clearer
Body marks: 32
Measurement:   Distance, circuit, size, volume, BPD, GS, CRL, FL, AC, HC
Connectors: VGA, PAL-D, Video printer port,USB port(optional)
Dual Monitor: 14 inch B/W monitor (SVGA non-interlaced ), 15 inch color LCD(optional).
Pseudo color: Connection with normal monitor is available
Cine loop: 256 frames, automatic or manual
Image memory: ≥32
Power: AC220 ± 22V, 50Hz±1Hz   /   AC110 ±11V, 60Hz ±1Hz
